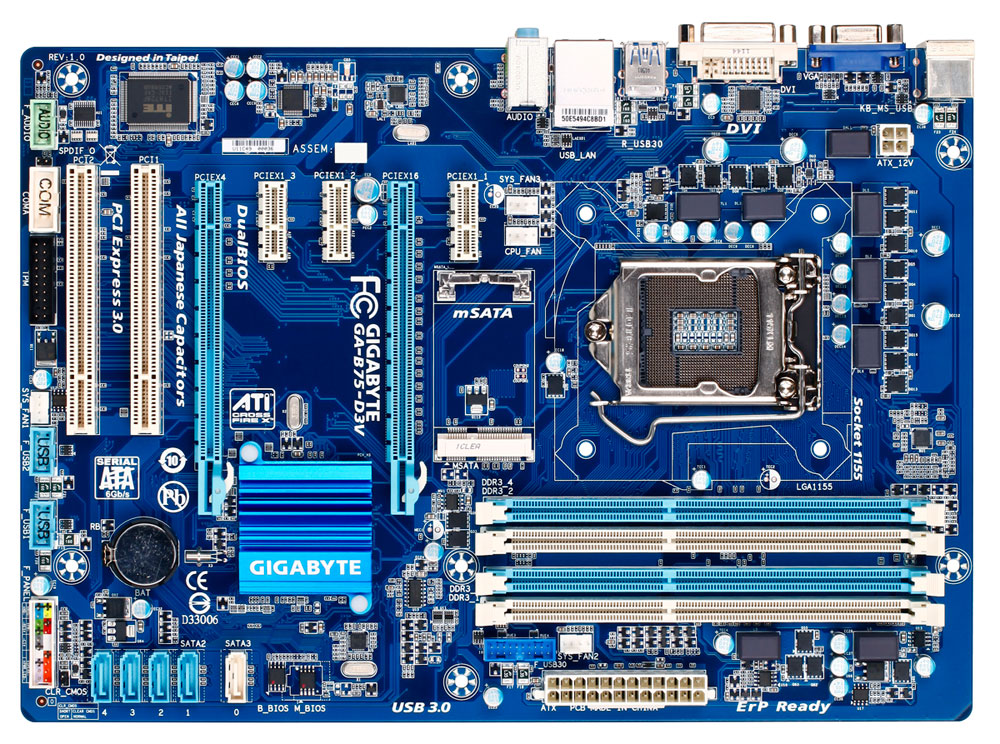

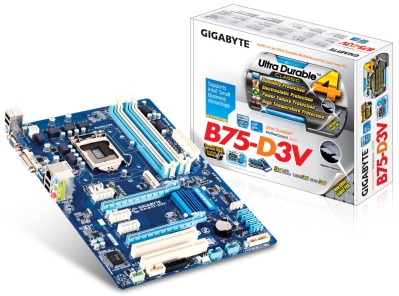

[리퍼] 기가바이트 B75 D3V

본 제품은 박스패킹 없이 상품만 제공됩니다.  제이씨현에서 보유하고 있는 리퍼비시 상품으로 제이씨현에서 출고전 전수작동검사를 마친제품입니다. 그러나 리퍼비시 특성상, 일반제품보다 불량률이 높은점 감안해주시기 바라며, 교환,환불 등을 적극적으로 처리하여 드리니 이점 참고바랍니다.

본제품은 제이씨현기준 A/S가 만료된 제품으로, 기존 리퍼비시 제이씨현 A/S시에 구매 입증, A/S기간 확인 등의 문제로 원활하지 못한 문제가 발생하여, 이번 리퍼부터 A/S방식을 아래와 같이 적용합니다.

A/S 접수처 : 보드나라/케이벤치

기간 : 1개월

재고보유시 : 주문확인메뉴에서 A/S 접수 -> 선출고 후 회수

재고미보유시 : 주문확인메뉴에서 A/S 접수 -> 회수후 출고 ( 최소 4 ~ 7일 소요)



B75 메인보드는 코어2세대/3세대 (샌디브릿지/아이비브릿지) 용 메인보드입니다. 구매에 참고바랍니다.





CPU	Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium®processors/Intel® Celeron® processors in the LGA1155 package L3 cache varies with CPU (Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
칩셋	Intel® B75 Express Chipset
메모리	4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB. Dual channel memory architecture Support for DDR3 2200(OC)/1600/1333/1066 MHz memory modules * To support DDR3 1600 MHz, you must install an Intel® 22nm (Ivy Bridge) CPU that supports DDR3 1600 MHz. Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules * To support XMP memory, you must install an Intel® 22nm (Ivy Bridge) CPU that supports DDR3 1600 MHz. (Please refer "Memory Support List" for more information.)
온보드 그래픽	Integrated Graphics Processor: 1 x D-Sub port 1 x DVI-D port, supporting a maximum resolution of 1920x1200 * The DVI-D port does not support D-Sub connection by adapter.
오디오	Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
랜	Atheros GbE LAN chip (10/100/1000 Mbit)
확장 슬롯	1 x PCI Express x16 slot, running at x16 (PCIEX16) (The PCIEX16 slot conforms to PCI Express 3.0 standard.) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCI Express x16 slot supports up to PCI Express 2.0 standard when an Intel 32nm (Sandy Bridge) CPU is installed. 1 x PCI Express x16 slot, running at x4 (PCIEX4) 3 x PCI Express x1 slots (The PCIEX4 slot and all PCI Express x1 slots conform to PCI Express 2.0 standard.) 2 x PCI slots
멀티그래픽 기술	Support for AMD CrossFireX™ technology
스토리지 인터페이스	Chipset: 1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device 4 x SATA 3Gb/s connectors (SATA2 1~4) supporting up to 4 SATA 3Gb/s devices 1 x mSATA connector
USB	Chipset: Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers) * In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed. Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
내부 I / O 커넥터	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x SATA 6Gb/s connector 4 x SATA 3Gb/s connectors 1 x mSATA connector 1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper 1 x Trusted Platform Module (TPM) header
후면 패널 커넥터	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 2 x USB 3.0/2.0 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In/Line Out/Microphone)
I / O 컨트롤러	iTE I/O Controller Chip
H / W 모니터링	System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU overheating warning CPU/System fan fail warning CPU/System fan speed control * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
BIOS	2 x 64 Mbit flash Use of licensed AMI EFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
특징	Support for @BIOS Support for Q-Flash Support for Xpress Install Support for Xpress Recovery2 Support for Auto Green Support for ON/OFF Charge Support for Q-Share Support for LAN Optimizer (Intelligent optimization network management tool)
번들 소프트웨어	Norton Internet Security (OEM version) Intel® Rapid Start Technology Intel® Smart Connect Technology Intel® Small Business Advantage
운영 체제	Support for Microsoft® Windows 8/7/XP
Form Factor	ATX Form Factor; 30.5cm x 21.5cm
Remark	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
